Canon EF100-400mm f/4.5-5.6L IS II USM telephoto zoom lensCanon EF100-400mm f/4.5-5.6L IS II USM

Overview

After many years of rumours, the original EF100-400 is updated, although it is a completely different design, saying goodbye to the old push-pull zoom, being more similar to the 70-300L.

The lens is a bit longer, thicker and heavier than the old one, but the new zoom design should be better with respect to dust getting sucked inside. Compared to the (1998) original it has 3 IS modes and 4 stops of IS vs. 1.5 in original. The lens locks IS elements when tripod use is detected. MFD is reduced to 3.2 feet (vs. 6.5 ft) giving the lens 0.31x maximum magnification. The ET-83D hood is included, with an opening for easier adjustment of filters.

It also features a newly designed tripod mount.

Due to ship in December 2014

Available from: Amazon.com | Amazon.co.uk | B&H | Adorama

Lens specifications

Focal Length & Maximum Aperture 100-400mm 1:4.5-5.6
Lens Construction 21 elements in 16 groups
Maximum Magnification (x) 0.31
Focus Method Internal with USM
Closest Focusing Distance 0.98m / 38.58"
Filter Size 77mm
Max. Diameter x Length, Weight 3.7 x 7.6", 3.46 lb. / 94 x 193mm, 1570g

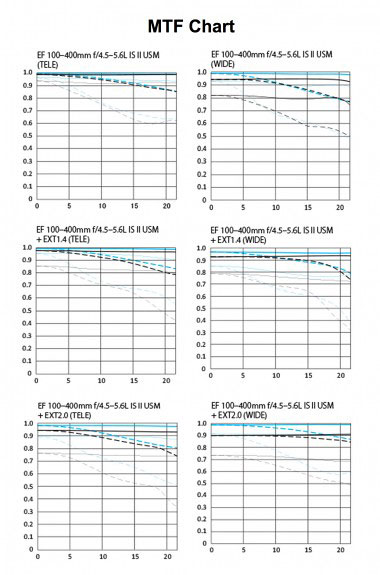

Canon EF100-400mm f/4.5-5.6L IS II USM telephoto zoom lens mtf charts

A quick guide to MTF charts (which only measure contrast and resolution. Canon's guide to their MTF charts)

Black lines reflect lens performance at widest aperture.
Blue lines show the performance at f/8

Thick lines indicate lens contrast
Thin lines indicate lens resolution

Dashed lines: Lens performance with meridional lines.
Solid lines: Lens performance with sagittal lines

Closer sagittal and meridional chart lines indicate more 'natural' out of focus areas.

Remember that MTF charts are good for comparing similar lenses, so comparing ones from the 14mm f2.8L and 300mm 2.8L won't tell you much at all, whilst comparing the EF14 2.8L with the EF14 2.8L II will show meaningful differences. Note that other manufacturers may have different ways of displaying such information that may or may not match up with the Canon figures.

Canon EF100-400mm f/4.5-5.6L IS II USM telephoto zoom lens lens hood

EF100-400mm f/4.5-5.6L IS II USM reviews and articles

Written a review? Contact us and we'll add it to the list.

Sample images

Initial test images on Canon China site

Product launch

MELVILLE, N.Y., November 10, 2014 ─ Canon U.S.A., a leader in digital imaging solutions, today announced the highly anticipated Canon EF 100-400mm f/4.5-5.6L II USM lens, a second generation compact super-telephoto zoom lens featuring significant advancements in optical quality, image stabilization performance up-to-four steps, and rotating-zoom-ring design. This new L-series super- telephoto zoom lens features Canon L-series weather resistance and rugged magnesium housing to meet the needs of wildlife and sports photographers or photojournalists working out in the elements. Fully compatible with all EOS cameras, the EF 100-400mm f/4.5-5.6L II USM features a completely redesigned optical formula containing one Fluorite and one Super UD lens element ─ a combination unique to lenses in this focal range ─ to help deliver sharp images with high resolution and contrast. This combination of elements helps thoroughly suppress chromatic aberration throughout the entire zoom range.

“The Canon EF 100-400mm f/4.5-5.6L II USM is the logical evolution of the very popular EF 100-400mm f/4.5-5.6L IS USM introduced 16 years ago,” said Yuichi Ishizuka, President and COO of Canon U.S.A., Inc., “This long awaited, next generation lens was developed to be a highly portable and adaptable telephoto zoom lens for today’s modern professional and advanced amateur photographers.”

For photographers who want to work as closely as possible to their subjects, the minimum focusing distance of the lens has been reduced to just 3.2 ft. (0.98m), resulting in maximum magnification of 0.31x. The original EF 100-400mm f/4.5-5.6L IS USM was well known for its push-pull zoom adjustment, but the EF 100-400mm f/4.5-5.6L II USM uses a rotation-type zoom ring similar to the one found on the EF 70-300mm f/4-5.6L IS USM lens that allows for more precise adjustments, easier handling, and consistently excellent weight balance during handheld photography. In addition, the lens features an improved zoom torque adjustment ring that allows for the easy setting of zoom tension based on personal shooting preferences. The Canon EF 100-400mm f/4.5-5.6L II USM also features an inner focusing system, a powerful yet quiet Ring USM, a high-speed CPU and optimized auto focus (AF) algorithms for fast and accurate autofocusing in various shooting situations.

The Canon EF 100-400mm f/4.5-5.6L II USM features three Image Stabilization (IS) modes ─ standard, panning, and during exposure only. Each IS mode is individually engineered to help provide outstanding results in a wide variety of shooting situations, and all serve to satisfy the personal preferences of photographers based on the type of IS they desire. The optical IS provides up to four shutter speed steps of correction, increased from 1.5 steps in the previous model*. In addition, the EF 100-400mm f/4.5-5.6L II USM features Canon’s newly developed Air Sphere Coating (ASC) which helps to reduce backlit flaring and ghosting significantly, as well as a 9-bladed circular aperture Electro-Magnetic Diaphragm that helps to enhance beautiful, softly blurred backgrounds.

As with all L-series lenses, the Canon EF 100-400mm f/4.5-5.6L II USM is highly resistant to dust and water, with excellent durability in even harsh conditions, ideal for wildlife photographers even in rainforest environments, or sports photographers on the sideline grabbing action shots of the big game. Fluorine coating on the front and rear surfaces of the lens can repel dust particles and water droplets. It also makes smears and fingerprints easy to remove without the use of lens cleaning fluid. Included with the lens is the new ET-83D lens hood, that features a cleverly placed and convenient side window allowing the user to easily adjust specialty filters while the lens hood remains in place. In addition, the EF 100-400mm f/4.5-5.6L II USM is equipped with a newly designed detachable tripod mount which can be removed to reduce weight during handheld operation.

Pricing and Availability:
The Canon EF 100-400mm f/4.5-5.6L II USM Super-Telephoto Zoom Lens is scheduled to be available in December 2014 for an estimated retail price of $2,199.00
